I/O Module

The In-Sight Micro I/O Module extends the capabilities of the In-Sight Micro vision system by providing:

  • Ethernet port connection to In-Sight Micro vision system includes PoE injector
  • 8 discrete inputs and 8 discrete outputs
  • RS-232 Serial Communication
  • Ethernet port for LAN / Programmer's PC
  • Wiring terminals for high speed I/O (Requires additional cable if  high speed I/O is being used.  High Speed I/O for In-Sight Micros provide 1 trigger input and 2 discrete outputs.)
  • Application note regarding Ethernet I/O can be found under "Integration Notes" on the Downloads page

詳細資訊

COGNEX 康耐視|宇佑科技

I/O Module

機器視覺配件,用於相機通訊、供電、顯示與校正配置評估。以下整理產品資料、技術文件與應用諮詢入口。

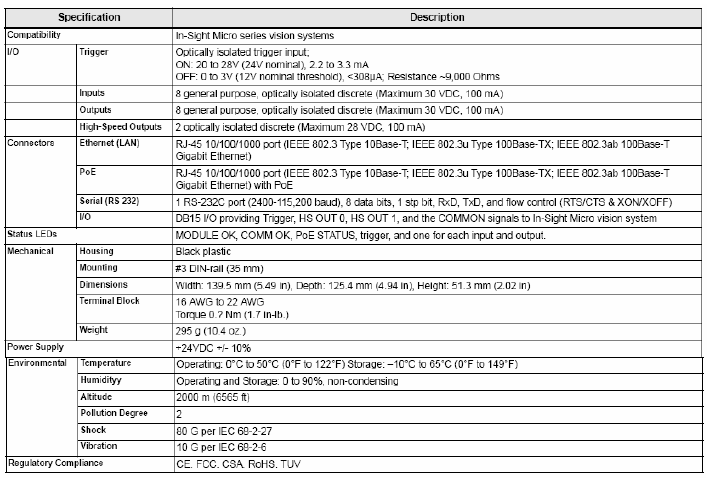

Technical Specifications for CIO-MICRO

宇佑科技|從應用評估到視覺系統整合

提供檢測目標、代表性樣品或影像、產線節拍、安裝空間與通訊需求,我們可協助評估選型、光學配置、讀取或檢測測試及設備整合。教育訓練、現場支援與維護服務依專案需求協議安排。

如何開始產品與應用評估?

先提供目前的檢測問題、允收標準與設備條件,再確認測試範圍及整合方式。實際功能、相容性與檢測效果須依機型、原廠文件及樣品測試確認。
