LX系列小部件檢測光幕

LX系列小部件檢測光幕
小部件的檢測光幕可以在光幕的有效區域內,檢測體型較小的被測物是否通過.

概觀
• 同步多光束高精度紅外LED發射和接收﹐精確光線交叉發射與接收﹐可檢測細小物體
• 可檢測最小尺寸5.6mm和側面極小的物體
• 0.8 ~ 3.2毫秒響應速度,即便最慢的監測模式也比同類產品速度快
• 使自動化系統以最高的效率運行

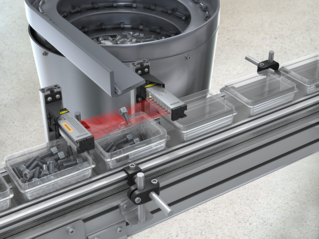

• 適用於模具衝壓保護﹐小部件或藥片計數﹐包裹搬送和各種高度檢測應用
• 67,143﹐295mm3種檢測高度﹐兩種檢測距離:100至200mm和300mm至2m
• 堅固鍍銀外殼﹐防護等級IP65
• 採用獨特的T型槽安裝方式


LX Series Part-Sensing Light Curtain

LX系列 Solution Profile

詳細資訊

參考應用
► 使用 BANNER LX系列感測器提升零件計數精準度與效率


► LX12EQ

LX Series: Emitter; Standard Range
Range: Normal 300 mm - 2 m; Input: 10-30 V dc
Output: No output
150 mm (6 in) M12 Pigtail QD



► LX12RQ

LX Series: Receiver; Standard Range
Range: Normal 300 mm - 2 m; Input: 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
150 mm (6 in) M12 Pigtail QD



► LX3EQ

LX Series: Emitter; Standard Range
Range: Normal 300 mm - 2 m; Input 10-30 V dc
Output: No output
150 mm (6 in) M12 Pigtail QD



► LX3ESR

LX Series: Emitter; Short Range
Range: Normal 100-200 mm; input 10-30 V dc
Output: No output
2 m (6.5 ft) Cable



► LX3ESRQ

LX Series: Emitter; Short-Range
Range: Normal 100-200 mm; Input: 10-30 V dc
Output: No output
150 mm (6 in) M12 Pigtail QD



► LX3R

LX Series: Receiver; Standard Range
Range: Normal 300 mm - 2 m; Input 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
2 m (6.5 ft) Cable



► LX3RQ

LX Series: Receiver; Standard Range
Range: Normal 300 mm - 2 m; Input: 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
150 mm (6 in) M12 Pigtail QD



► LX3RSRQ

LX Series: Receiver; Short-Range
Range: Normal 100-200 mm; Input 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
150 mm (6 in) M12 Pigtail QD



► LX6E

LX Series: Emitter; Standard Range
Range: Normal 300 mm - 2 m; Input 10-30 V dc
Output: No output
2 m (6.5 ft) Cable



► LX6EQ

LX Series: Emitter; Standard Range
Range: Normal 300 mm - 2 m; Input: 10-30 V dc
Output: No output
150 mm (6 in) M12 Pigtail QD



► LX6R

LX Series: Receiver; Standard Range
Range: Normal 300 mm - 2 m; Input 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
2 m (6.5 ft) Cable



► LX6RQ

LX Series: Receiver; Standard Range
Range: Normal 300 mm - 2 m; Input: 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
DO Output; 150 mm (6 in) M12 Pigtail QD



► LX9EQ

LX Series: Emitter; Standard Range
Range: Normal 300 mm - 2 m; Input 10-30 V dc
Output: No output
150 mm (6 in) M12 Pigtail QD



► LX9R

LX Series: Receiver; Standard Range
Range: Normal 300 mm - 2 m; Input 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
2 m (6.5 ft) Cable



► LX9RQ

LX Series: Receiver; Standard Range
Range: Normal 300 mm - 2 m; Input 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
150 mm (6 in) M12 Pigtail QD
